Analog
| Article number | Info | ||
|---|---|---|---|
| CD2H-30M12A | Compact laser sensor, programmable with display. Fast response time. Linearity 0.1%. Protection class IP67. Work range ±5 mm. Laser spot Ø50µm. Resolution 0.25µm. | Dimension: 60x50x27mm Output: 4-20mA 0-10V PNP
Connection: M12 pigtail-kontakt 300mm Working range: 25...35mm |  |
| CD2H-245M122 | Compact laser sensor, programmable with display. Fast response time. Linearity 0.1%. Protection class IP67. Work range ±175 mm. Laser point Ø 0.5mm. Resolution 10µm. | Dimension: 60x50x27mm Output: 4-20mA 0-10V PNP
Connection: M12 pigtail-kontakt 300mm Working range: 70...420mm | |
| CDX-30A | Compact laser sensor, programmable with display. Fast response time. Linearity 0.03%. Protection class IP67. Work range ±5 mm. Laser spot Ø30µm. Resolution 0.25µm (sensor head only). | Dimension: 78x75x29mm Output: Ethernet eller till CDA-M förstärkare Connection: M12 pigtail-kontakt 500mm Working range: 25...35mm |  |
| CDX-W30A | Compact laser sensor, programmable with display. Fast response time. Linearity 0.015%. Protection class IP67. Work range ±5 mm. Laser line 30x1000µm. Resolution 0.25µm (sensor head only). | Dimension: 78x75x29mm Output: Ethernet eller till CDA-M förstärkare Connection: M12 pigtail-kontakt 500mm Working range: 25...35mm | |
| CD22-15AM12 | Compact laser sensor, programmable with a 4-digit display. Fast response time. Linearity 0.1%. Protection class IP67. Working range ±5 mm. High repeatability accuracy 1µm. | Dimension: 44x31x18mm Output: 4-20mA PNP/NPN Connection: M12 pigtail-kontakt 300mm Working range: 10...20mm |  |
| CD22-35AM12 | Compact laser sensor, programmable with a 4-digit display. Fast response time. Linearity 0.1%. Protection class IP67. Working range ±15 mm. High repeatability accuracy 6µm. | Dimension: 44x31x18mm Output: 4-20mA PNP/NPN Connection: M12 pigtail-kontakt 300mm Working range: 20...50mm | |
| CDX-85A | Compact laser sensor, programmable with display. Fast response time. Linearity 0.03%. Protection class IP67. Working range ±20 mm. Resolution 0.25µm (sensor head only). | Dimension: 78x75x29mm Output: Ethernet eller till CDA-M förstärkare Connection: M12 pigtail-kontakt 500mm Working range: 65...105mm | |
| CD22-100AM12 | Compact laser sensor, programmable with a 4-digit display. Fast response time. Linearity 0.1%. Protection class IP67. Working range ±50 mm. High repeatability accuracy 20µm. | Dimension: 44x31x18mm Output: 4-20mA PNP/NPN Connection: M12 pigtail-kontakt 300mm Working range: 50...150mm | |
| CDX-150A | Compact laser sensor, programmable with display. Fast response time. Linearity 0.04%. Protection class IP67. Work range ±40 mm. Resolution 0.25µm (sensor head only). | Dimension: 78x75x29mm Output: Ethernet eller till CDA-M förstärkare Connection: M12 pigtail-kontakt 500mm Working range: 110...190mm | |

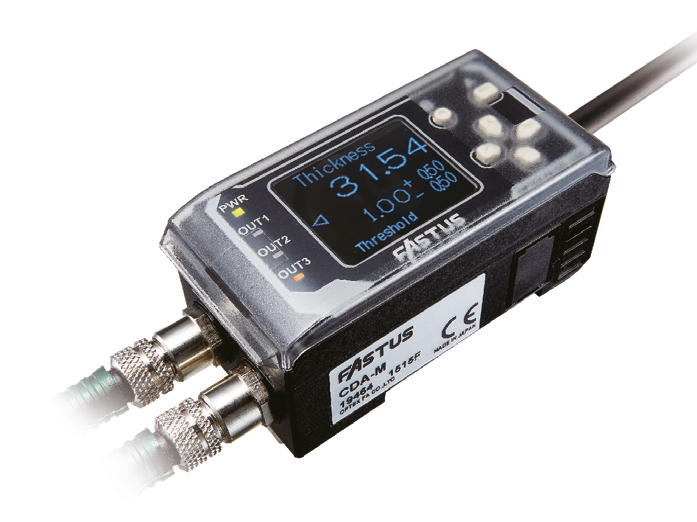

| CDA-M | Amplifier for up to two CDX sensor heads of model CDX or CD22 (RS-485). Analog or digital outputs. Suitable for thickness and height difference measurements. |  |
