Through-beam
Article number | Info | Dimension | Polarity and Output | Connection | Operating range | |
---|---|---|---|---|---|---|
FALH/X0-1E FALD/BP-1E Rekommenderad | Laser photocell with a robust metal housing. Adjustable with long sensing distance and accurate detection. Glass optics. Red laser light. | M18x98mm | PNP Light-On Dark-On | M12, 4-pol | 50 meter | ![]() |

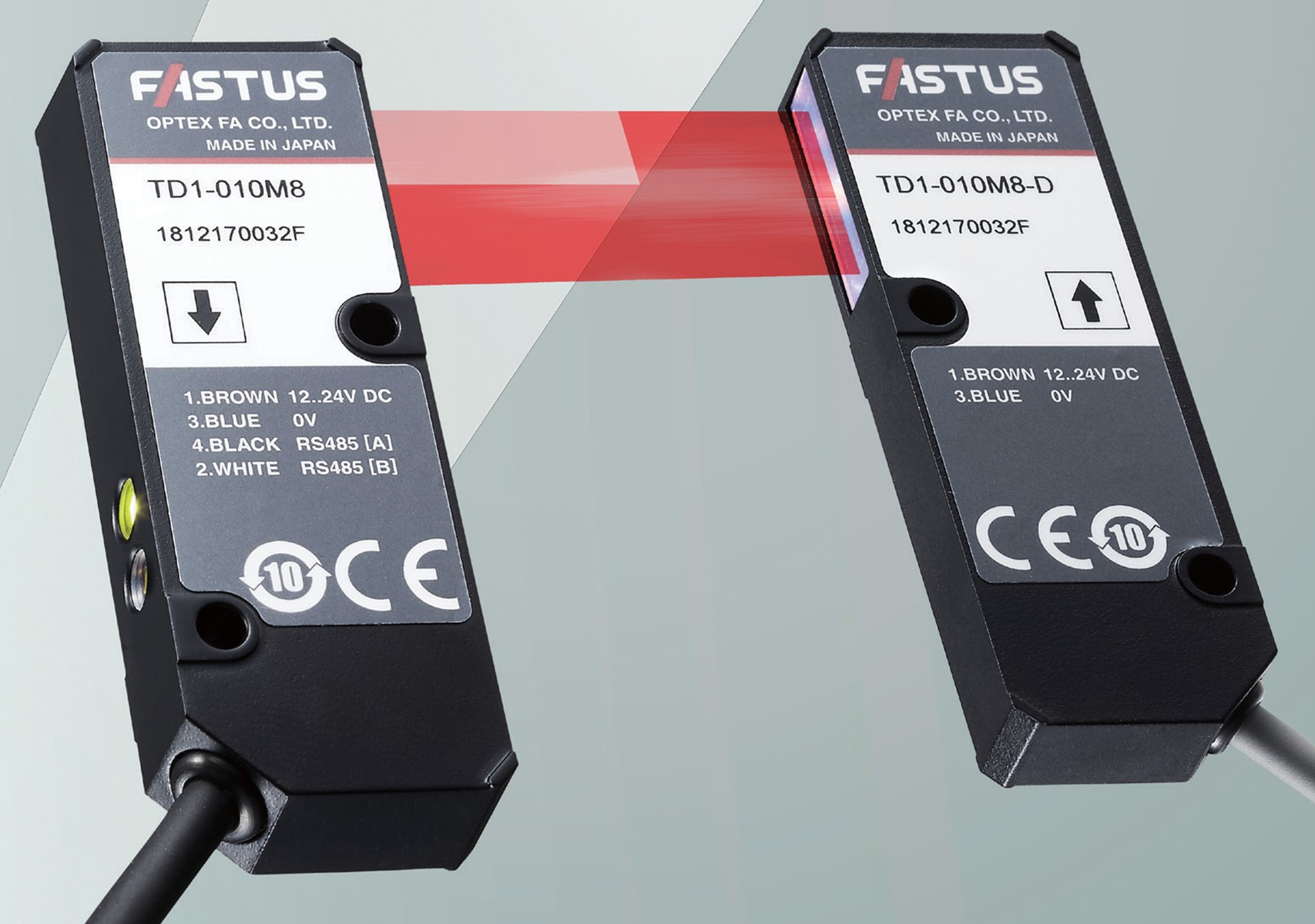

TD1-010M8 | Area laser sensor. Working range 10mm. Linearity 0.4%. Repeatability ±4µm. Suitable for edge guidance, dimension, position, hole size. | 61x21x9,6mm | RS-485 (Analog utsignal via CDA-DM2) | M8 pigtail-kontakt 300mm | Max 300mm | ![]() |

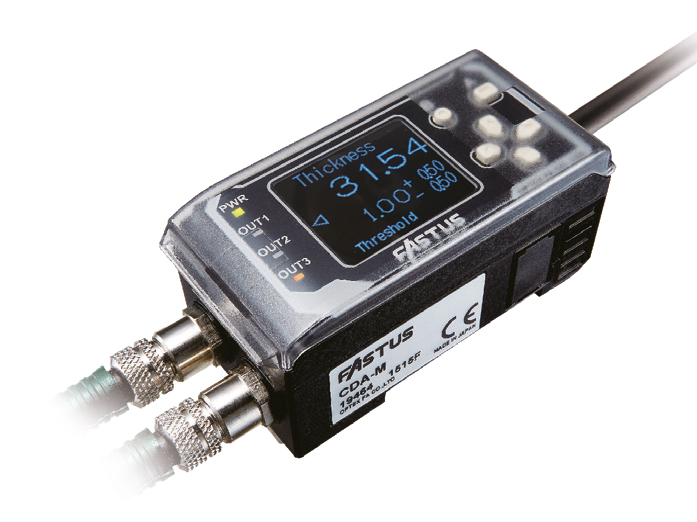

CDA-DM2 | Amplifier for up to two pairs of TD1 sensor heads. Analog and digital output signals. Calculation functions for edge/position and width/hole. | 33x34x78mm | 4-20mA 0-10V PNP | M8 pigtail-kontakt 300mm | ![]() | |
ZT-L3000CP | Rectangular laser sensor. Adjustable sensing distance with a 1-turn potentiometer screw. Response time 250 μs. | 31x20x11mm | PNP NO/NC | M8, 4-pol | 0-30 meter | ![]() |
FALH/X0-3E FALD/BP-3E | Laser photocell with metal housing and angled optics, 90° light output suitable for narrow spaces. Adjustable with long sensing distance and precise detection. Glass optics. Red laser light. | M18x108mm | PNP Light-On Dark-On | M12, 4-pol | 50 meter | ![]() |
