Background suppression
| Article number | Info | ||
|---|---|---|---|

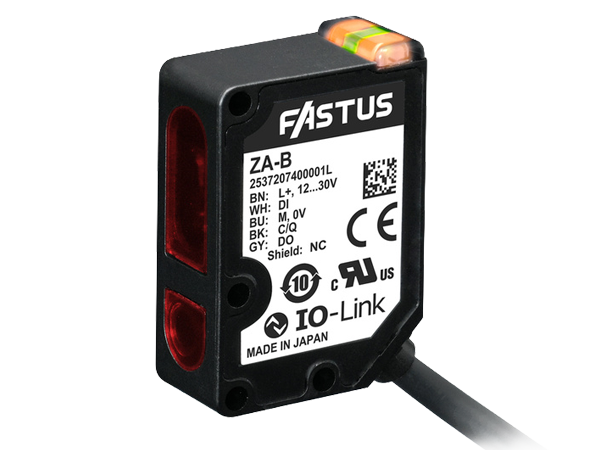

| Recommended | Compact background suppressed laser sensor, programmable with OLED display. Fast response time. Protection class IP67. Digital measuring signal via IO-Link. Linearity 0.1% (±0.03 mm) High repeatability 0.01mm | Dimension: 46x30x15mm Output: PNP/NPN Light-On Dark-On
Connection: M12 pigtail-kontakt 300mm, 4-pol Sensing distance: 30...60mm |  |
| Recommended | Compact background-suppressed laser sensor, programmable with OLED display. Fast response time. Protection class IP67. Digital measuring signal via IO-Link. Linearity 1.6% (±15.2 mm) High repeatability 2mm | Dimension: 46x30x15mm Output: PNP/NPN Light-On Dark-On
Connection: M12 pigtail-kontakt 300mm, 4-pol Sensing distance: 50...1000mm | |
| Recommended | Background-blurred laser sensor for extra precise detection. Laser class 2. High switching frequency. 1.5kHz. Protection class: IP67. | Dimension: M18x80mm Output: PNP Light-On Dark-On Connection: H4 – M12, 4-pol |  |

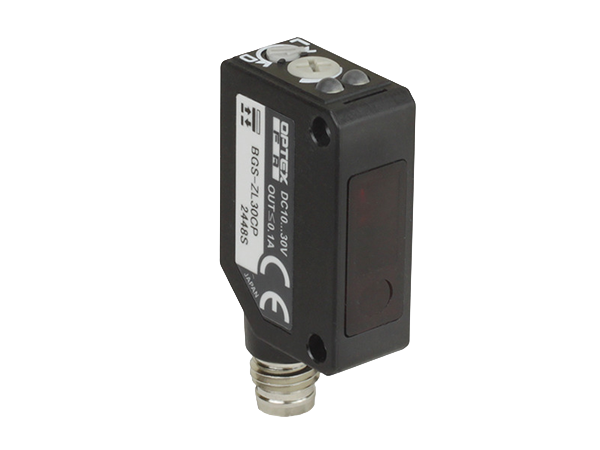

| Recommended | Compact laser sensor with background suppression. Adjustable with 4-turn potentiometer. Fast response time, 250μs. IP67. | Dimension: 31x20x11mm Output: PNP Light-On Dark-On Connection: F4 – M8, 4-pol Sensing distance: 10...300mm |  |
| Compact background-suppressed laser sensor, programmable with OLED display. Fast response time. Protection class IP67. Digital measuring signal via IO-Link. Linearity 0.2% (±0.23 mm) High repeatability 0.05mm | Dimension: 46x30x15mm Output: PNP/NPN Light-On Dark-On
Connection: M12 pigtail-kontakt 300mm, 4-pol Sensing distance: 35...150mm | | |
| Compact background-suppressed laser sensor, programmable with OLED display. Fast response time. Protection class IP67. Digital measuring signal via IO-Link. Linearity 0.3% (±0.8 mm) High repeat accuracy 0.2mm | Dimension: 46x30x15mm Output: PNP/NPN Light-On Dark-On
Connection: M12 pigtail-kontakt 300mm, 4-pol Sensing distance: 35...300mm | | |
| Compact background-suppressed laser sensor, programmable with OLED display. Fast response time. IP67 protection class. Digital measuring signal via IO-Link. Linearity 0.7% (±3.3 mm) High repeatability 0.5mm | Dimension: 46x30x15mm Output: PNP/NPN Light-On Dark-On
Connection: M12 pigtail-kontakt 300mm, 4-pol Sensing distance: 35...500mm | |
