Analog

Article number	Info

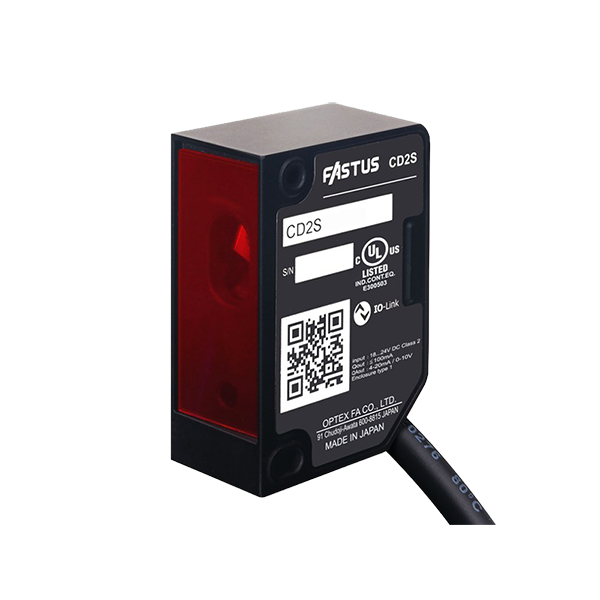

CD2S-30M12	Compact laser sensor, programmable with OLED display. Fast response time. Linearity 0.1%. Protection class IP67. Working range ±5 mm High repeatability 2µm	Dimension: 46x33x18mm Output: 4-20mA, 0-10V, PNP/NPN Connection: M12 pigtail-kontakt 300mm Working range: 25...35mm
CD2S-50M12	Compact laser sensor, programmable with OLED display. Fast response time. Linearity 0.1%. Protection class IP67. Working range ±15 mm High repeatability 5µm	Dimension: 44x31x18mm Output: 4-20mA PNP/NPN Connection: M12 pigtail-kontakt 300mm Working range: 35...65mm
CD2S-110M12	Compact laser sensor, programmable with OLED display. Fast response time. Linearity 0.1%. Protection class IP67. Working range ±50 mm High repeatability 20µm	Dimension: 46x33x18mm Output: 4-20mA, 0-10V, PNP/NPN Connection: M12 pigtail-kontakt 300mm Working range: 50...150mm
CD2H-30M12A	Compact laser sensor, programmable with display. Fast response time. Linearity 0.1%. Protection class IP67. Work range ±5 mm. Laser spot Ø50µm. Resolution 0.25µm.	Dimension: 60x50x27mm Output: 4-20mA 0-10V PNP Connection: M12 pigtail-kontakt 300mm Working range: 25...35mm
CD2H-245M122	Compact laser sensor, programmable with display. Fast response time. Linearity 0.1%. Protection class IP67. Work range ±175 mm. Laser point Ø 0.5mm. Resolution 10µm.	Dimension: 60x50x27mm Output: 4-20mA 0-10V PNP Connection: M12 pigtail-kontakt 300mm Working range: 70...420mm
CDX-30A	Compact laser sensor, programmable with display. Fast response time. Linearity 0.03%. Protection class IP67. Work range ±5 mm. Laser spot Ø30µm. Resolution 0.25µm (sensor head only).	Dimension: 78x75x29mm Output: Ethernet eller till CDA-M förstärkare Connection: M12 pigtail-kontakt 500mm Working range: 25...35mm
CDX-W30A	Compact laser sensor, programmable with display. Fast response time. Linearity 0.015%. Protection class IP67. Work range ±5 mm. Laser line 30x1000µm. Resolution 0.25µm (sensor head only).	Dimension: 78x75x29mm Output: Ethernet eller till CDA-M förstärkare Connection: M12 pigtail-kontakt 500mm Working range: 25...35mm
CDX-85A	Compact laser sensor, programmable with display. Fast response time. Linearity 0.03%. Protection class IP67. Working range ±20 mm. Resolution 0.25µm (sensor head only).	Dimension: 78x75x29mm Output: Ethernet eller till CDA-M förstärkare Connection: M12 pigtail-kontakt 500mm Working range: 65...105mm
CDX-150A	Compact laser sensor, programmable with display. Fast response time. Linearity 0.04%. Protection class IP67. Work range ±40 mm. Resolution 0.25µm (sensor head only).	Dimension: 78x75x29mm Output: Ethernet eller till CDA-M förstärkare Connection: M12 pigtail-kontakt 500mm Working range: 110...190mm
CD22-100AM12	Compact laser sensor, programmable with a 4-digit display. Fast response time. Linearity 0.1%. Protection class IP67. Working range ±50 mm. High repeatability accuracy 20µm.	Dimension: 44x31x18mm Output: 4-20mA PNP/NPN Connection: M12 pigtail-kontakt 300mm Working range: 50...150mm
CDA-M	Amplifier for up to two CDX sensor heads of model CDX or CD22 (RS-485). Analog or digital outputs. Suitable for thickness and height difference measurements.

Can't you find the sensor you are looking for?
Call +46 8 7713580 or email teknik@hemomatik.se
