Mäthjul och encodertillbehör

Article number Info

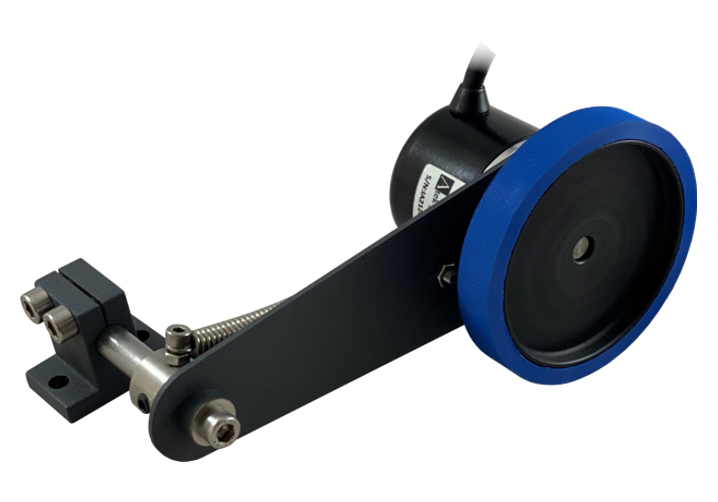

ATE10-250-250-HPL-3-3MY Complete measuring system with encoder, measuring wheel, and spring-loaded mount. Measuring wheel with a circumference of 250mm and friction surface in NBR. Simple and affordable model with 1 pulse/mm, IP54. Max 3,000 RPM, 3 meters cable.

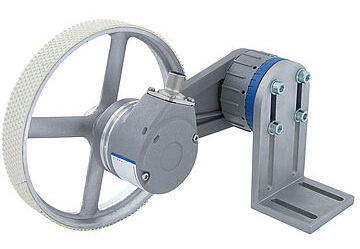

LMSMA35010024KG10 Complete measuring system with encoder, measuring wheel, and mounting bracket. Adjustable spring force 0-30N in 5N steps. Measuring wheel with 500mm circumference. Robust system for demanding applications. HTL 10-30VDC, ABN + inv. 10 pulses/mm, IP65/67. Max 8,000 RPM. M12 connector, 8-pin.

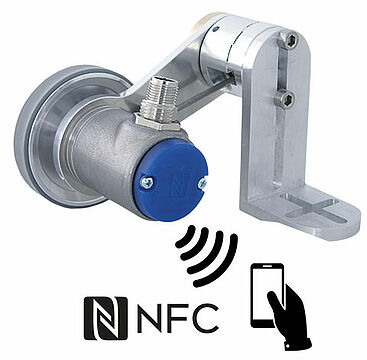

LMSCA32WDGNBASKH Compact measuring system with programmable resolution, up to 16,384 pulses/revolution. Adjustable spring force 0-20N in 5N steps. Measuring wheel with 200mm circumference. HTL/TTL VDC, ABN + inv., IP65/67. Max 12,000 RPM. M12 connector, 8-pin.

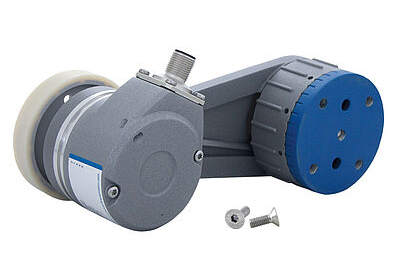

LMSMA22010024KH10 Complete measuring system with encoder, measuring wheel, and mounting bracket. Adjustable spring force 0-30N in 5N steps. Measuring wheel with 200mm circumference. Robust system for demanding applications. HTL 10-30VDC, ABN + inv. 10 pulses/mm, IP65/67. Max 8000RPM. M12 connector, 8-pin.

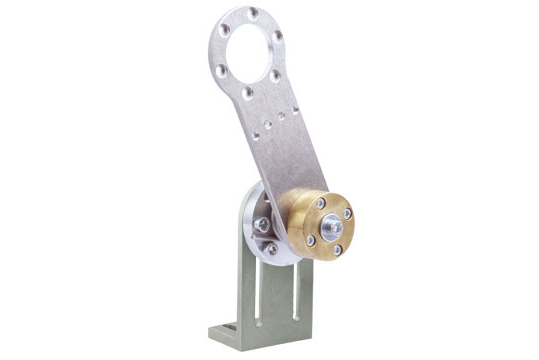

WDGMA10000 Mounting for encoder and measuring wheel, adjustable spring force 20N, 25N, and 30N. Suitable for most Ø58 encoders with clamping flange.

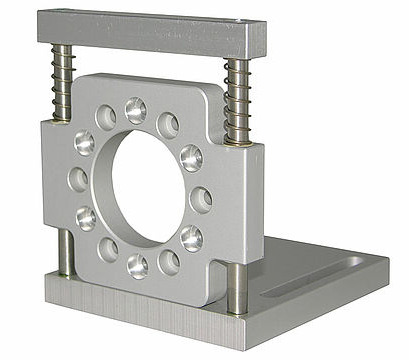

WDGDH10000 Encoder mounting with linear leveling shaft. Adjustable spring force with 8.4 mm spring travel at 25N. Suitable for most Ø58 encoders with clamping flange.
MW-58B Encoder mount

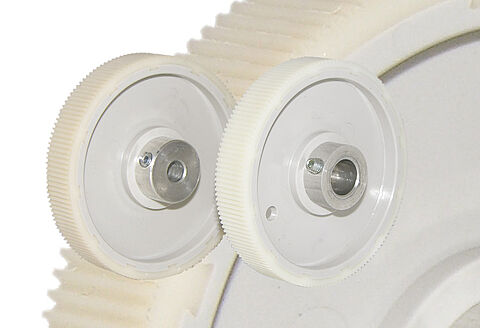

MR200KG10 Measuring wheel with a circumference of 200 mm. Intended for encoders with a Ø10mm shaft. Suitable for: Paper, cardboard, cable, non-oily metal, rough wood surface, plastic, flooring, and leather.

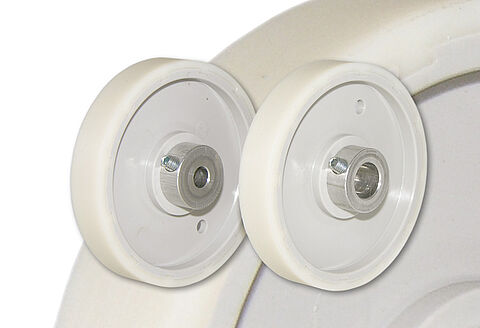

MR200KH10 Pulley with 200mm in circumference. Intended for encoder with Ø10mm shaft. Suitable for: smooth wood surface, plastic, wire, oily metal, paper, textile, cardboard, and fabric.

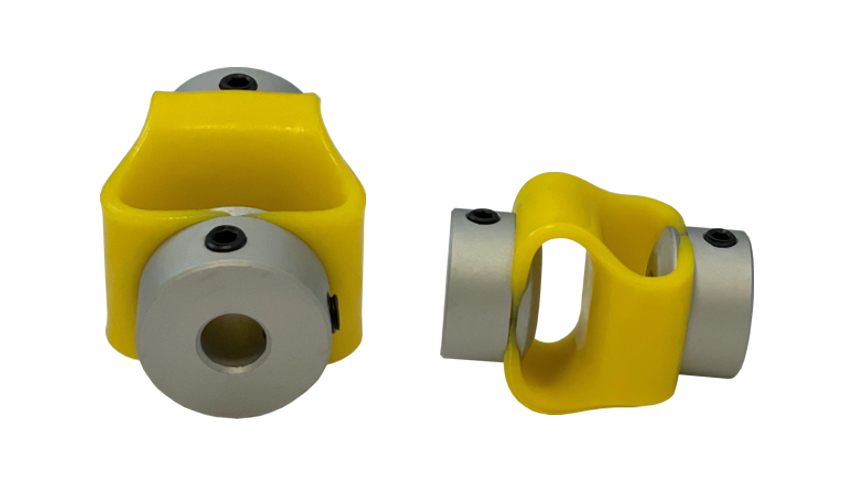

EC-serien Axle coupling with good axial and radial flexibility. For Ø6 or Ø10mm shafts. Torque-resistant and electrically insulated polyurethane. Max 3000 revolutions per minute.

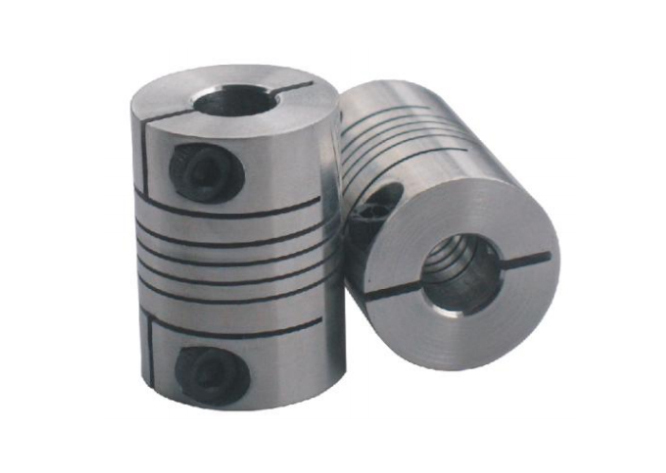

HT-serien Aluminum shaft coupling with clamp screw mounting. Designed for Ø6 or Ø10mm shafts. The coupling has a long lifespan and can withstand high torque and speed transmission.
H8FA-PS050 (KL-8-67-05-S) Female molded connector, M12 8-pin. 5 meters PVC cable shielded with free cable end.
