Incremental encoder
Article number | Info | |
---|---|---|

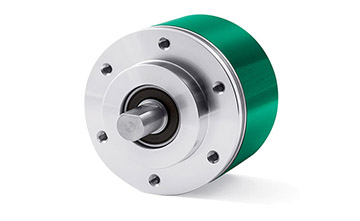

IQ58S-H-PROG-ZCW-4-10-R-L2 Recommended | Universal Ø58mm encoder, 5-30 VDC Shaft: Ø10 mm. Protection class: IP65. Resolution: Programmable before delivery up to 16384 PPR | ![]() |

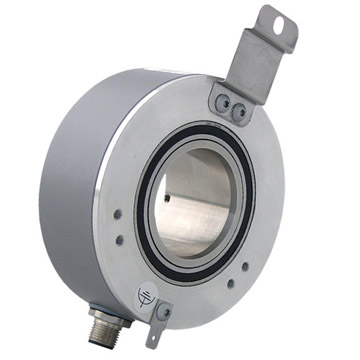

WDG 100H | Ø100mm hollow shaft encoder with optical principle. Hollow shaft sizes: Ø 25, 1" (25.4), 28, 30, 32, 35, 36, 38, 40, 42, 45 mm. Protection class: IP55 (including shaft). Resolution: up to 20,480 PPR | ![]() |

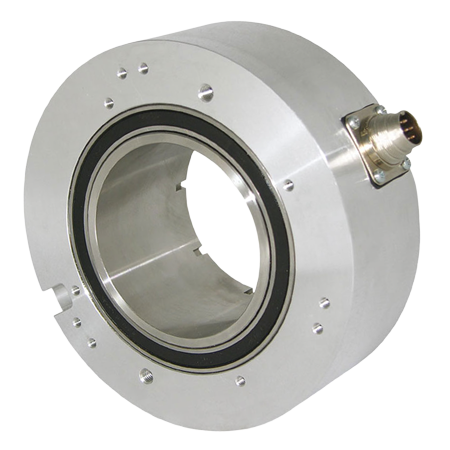

WDG 145H | Ø145mm hollow shaft encoder with optical principle. Hollow shaft sizes: Ø 45, 48, 50, 55, 60, 65, 72 mm. Protection class: IP54 (optional IP64). Resolution: up to 2,500 PPR. | ![]() |

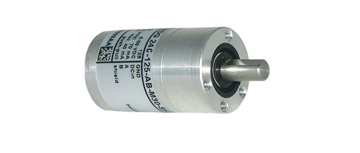

WDG 24C | Extremely compact encoder Ø24mm with magnetic principle Shaft: Ø6 mm. Protection class: up to IP67 (including shaft). Resolution: up to 1024 PPR | ![]() |
WDG 40A | Extremely compact encoder Ø24mm with magnetic principle Shaft: Ø6 mm. Protection class: up to IP67 (including shaft). Resolution: up to 2,500 PPR | ![]() |

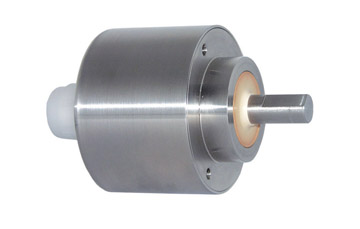

WDG 58V | Extremely compact encoder in stainless steel. Ecolab tested and resistant to cleaning agents and high-pressure washing. Suitable for applications such as food industry. Shaft: Ø10 mm. Protection class: IP67 & IP69K (including shaft). Resolution: up to 25,000 PPR. | ![]() |
WDGI 58A | Robust encoder Ø58mm with optical principle. Shaft: Ø6 mm. Protection class: IP67 (IP65 shaft). Resolution: up to 25,000 PPR | ![]() |

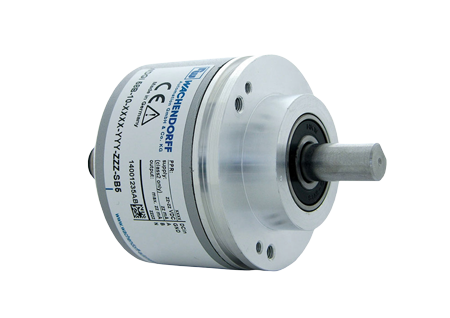

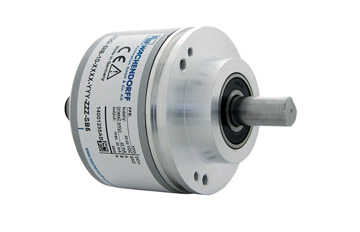

WDGI 58B | Robust standard model Ø58mm with optical principle. Shaft: Ø10 mm. Protection class: up to IP67 (Including shaft). Resolution: up to 25,000 PPR. | ![]() |

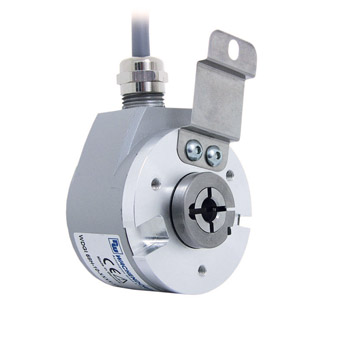

WDGI 58H | WDGI 58H Ø58mm hollow shaft encoder with optical principle. Hollow shaft options: Ø 8, 10, 12, 1/2" (12.7 mm), 14 mm, H7. Protection class: IP65 (including shaft). Resolution: up to 25,000 PPR | ![]() |
