Mini level switch
| Article number | Info | Level function | Connection | Electrical data | |
|---|---|---|---|---|---|
| HM-25X18-O-R* Recommended | Compact leakage guard without power consumption. A flat miniature float enables detection of leaks already at a 6mm liquid level. Easy installation with double-sided adhesive tape. Dimensions: 18x18x25mm. 5 meters PUR cable. | O | Straight cable | 1VA 24V 0,1A |  |
| HM18P-A-5M Recommended | Float switch in PP with G1/8" thread and Ø18mm float. The float is reversible for inverted function. 5 meters PVC cable. | S or O | Straight cable | 70VA 3-48V 1,5A |  |
| HM25P-A-5M Recommended | Float switch in PP with G1/8" thread and Ø25mm float. The float is reversible for inverted function. 5 meters PVC cable. | S or O | Straight cable | 70W 3-48V 1,5A |  |

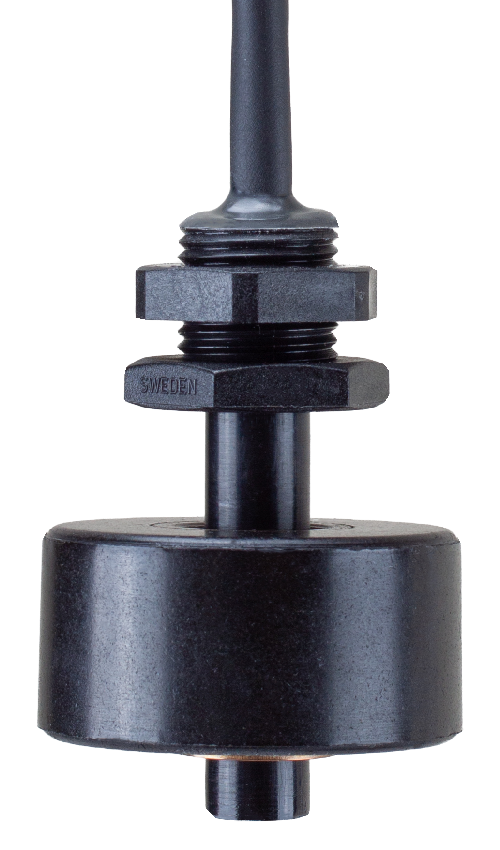

| HM40-O Recommended | Float switch in PA6 with Ø40mm float. Submersible with 5 meters RDO cable. | O | Straight cable | 20VA 50V 1A |  |
| HM40-S Recommended | Float switch in PA6 with Ø40mm float. Submersible with 5 meters RDO cable. | S | Straight cable | 20VA 50V 1A | |
| MFS17D2-A Recommended | Level switch in PP with G1/8" thread and Ø18mm float. The float is reversible for inverted function. 300mm flying leads, PVC. | S or O | Straight cable | 50VA 50V 0,5A |  |
| RFS22-A1 Recommended | Level switch in acid-resistant steel (SUS316) with G1/8" thread and Ø28mm float. The float is reversible for inverted function. 350mm flying leads, PVC. Temperature range: -40...120°C. | S or O | Straight cable | 50VA 50V 0,5A |  |
| HM-25X18-O-R-10M* | Compact leak detector without power consumption. A flat miniature float enables detection of leaks already at a 6mm liquid level. Easy installation with double-sided adhesive tape. Dimensions: 18x18x25mm. 10 meters of PUR cable. | O | Straight cable | 1VA 24V 0,1A | |
| HS23-A-SI | Submersible level sensor in SUS-316. High-temperature version, +125°C with 5m silicone cable. Custom-designed cable sealing, IP68. Angle bracket and nut in stainless steel included. | S or O | Straight cable | 70VA 48V 1,5A |  |
| HS28-A-PUR-5M | Swedish-made level switch in SUS316, 5m PUR cable, reversible float. | S or O | Straight cable | 70W 3-48V 1,5A |  |
| MFS17A-1-O | Level switch with brass probe and Ø20mm float in NBR. Length 1000mm and 3/4" connection suitable for oil drums, etc. 5 meters PUR cable. | O | Straight cable | 10VA 50V 0,5A |  |
| MFS17A-1-S | Level switch with brass probe and Ø20mm float in NBR. Length 1000mm and 3/4" connection suitable for oil drums etc. 5 meters PUR cable. | S | Straight cable | 10VA 50V 0,5A | |
| MFS17D-1-A | Float switch in PP with Ø18mm reversible float and 3/4" connection. 5 meters PUR cable. | S or O | Straight cable | 10VA 40V 0,5A |  |
| RFS-16 | Float switch in acid-resistant steel, SUS-316. High-temperature version -40…+200°C. G3/8” thread and Ø40mm float. | S or O | Straight cable | 50VA 3-48V 0,5A |  |
| SUBVAKT | Float switch in SUS-316 with Ø 28mm float. Submersible PUR cable allows the switch to be used as a level sensor as well. | S or O | Straight cable |  | |
| HM57-BFJ-A-5M | Level switch in acid-resistant steel (SUS316) with 1/4" NPT thread and Ø57mm float. The float is reversible for inverted function. 5 meters of RDOE cable. | S or O | Straight cable | 80VA 50V 1,3A |  |
| MFS17B2-A | Level switch with Ø27mm float in NBR. The float is reversible for inverted function. 300mm flying leads PVC. | S or O | Straight cable | 50VA 50V 0,5A |  |
| CP-782-PP | Level switch in PP with 1/8" NPT thread. Max 90°C. 600 mm single conductor. Ø26mm float. | S or O | Straight cable | 70VA 50V 0,5A |  |
