Rectangular ultrasound transducers
| Article number | Info | ||
|---|---|---|---|
| zws-15/CD/QS Recommended | Small rectangular ultrasonic sensor in impact-resistant plastic, with teach-in button, IP67. | Dimension: 32x22x12mm Output: 1xPNP Connection: M8, 4-pol Sensing distance: 20-150mm max 250mm |  |
| pms-15/CI/A1
| Ultrasonic sensor with hygienic design in acid-resistant steel. ECOLAB and EHEDG certified, IP66, IP67, IP68. | Dimension: 78x38x16mm Output: 4-20mA Connection: M8, 4-pol Sensing distance: 20-150mm max 250mm |  |
| pms-25/CF/A1
| Ultrasonic sensor with hygienic design in acid-resistant steel. ECOLAB and EHEDG certified, IP66, IP67, IP68. | Dimension: 78x38x16mm Output: Push-pull
Connection: M8, 4-pol Sensing distance: 30-250mm max 350mm |  |

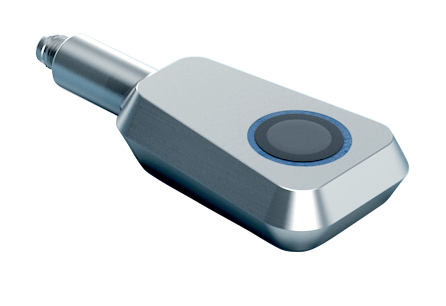

| pms-35/CI/A1
| Ultrasonic sensor with hygienic design in acid-resistant steel. ECOLAB and EHEDG certified, IP66, IP67, IP68. | Dimension: 78x38x16mm Output: 4-20mA Connection: M8, 4-pol Sensing distance: 70-350mm max 600mm |  |
| pms-100/CF/A1
| Ultrasonic sensor with hygienic design in acid-resistant steel. ECOLAB and EHEDG certified, IP66, IP67, IP68. | Dimension: 78x38x16mm Output: Push-pull
Connection: M8, 4-pol Sensing distance: 120-1000mm max 1300mm |  |
| zws-7/CD/QS | High switching frequency 250Hz. Small rectangular ultrasonic sensor in impact-resistant plastic, with teach-in button, IP67. | Dimension: 32x22x12mm Output: 1xPNP Connection: M8, 4-pol Sensing distance: 20-70mm max 100mm | |
| UQ1A/G6-0E | Universal ultrasonic sensor with rectangular sensor housing in standard mounting standard + M18. | Dimension: 53x38x20mm Output: 4-20mA PNP Connection: M12, 4-pol Sensing distance: 40-300mm |  |
| UQ1C/G6-0E | Universal ultrasonic sensor with rectangular sensor housing in standard mounting standard + M18. | Dimension: 53x38x20mm Output: 4-20mA PNP Connection: M12, 4-pol Sensing distance: 60-800mm | |
| UQ1D/G6-0E | Universal ultrasonic sensor with rectangular sensor housing in standard mounting standard + M18. | Dimension: 53x38x20mm Output: 4-20mA PNP Connection: M12, 4-pol Sensing distance: 80-1200mm | |
| zws-15/CU/QS | Small rectangular ultrasonic sensor in impact-resistant plastic, with teach-in button, IP67. | Dimension: 32x22x12mm Output: 0-10 V Connection: M8, 4-pol Sensing distance: 20-150mm max 250mm | |
| sks-15/D | One of the world's smallest ultrasonic sensors. Teach-in programming via push button. | Dimension: 16x33x12mm Output: 1xPNP Connection: M8, 3-pol Sensing distance: 20-150mm max 250mm |  |
| zws-24/CD/QS | Small rectangular ultrasonic sensor in impact-resistant plastic, with teach-in button, IP67. | Dimension: 32x23x12mm Output: 1xPNP Connection: M8, 4-pol Sensing distance: 50-240mm max 350mm |  |
| zws-24/CI/QS | Small rectangular ultrasonic sensor in impact-resistant plastic, with teach-in button, IP67. | Dimension: 32x23x12mm Output: 4-20 mA Connection: M8, 4-pol Sensing distance: 50-240mm max 350mm | |
| lcs-25/DD/QP | Compact ultrasonic sensor, programmable via teach-by-wire or via computer (with LCA-2-KIT). | Dimension: 30x100mm Output: 2xPNP Connection: M12, 5-pol Sensing distance: 30-250mm max 350mm |  |
| lcs-25/IU/QP | Compact ultrasonic sensor, programmable via teach-by-wire or via computer (with LCA-2-KIT). | Dimension: 30x100mm Output: 0-10V/4-20mA Connection: M12, 5-pol Sensing distance: 30-250mm max 350mm | |
| CUBE-35/FFIU | Program ultrasonic sensor with extended echo-damping features. House mountable in 5 positions. Mount with quick-lock included. | Dimension: 40x40x40mm Output: 2xPush-pull + 1xAnalog
Connection: M12, 5-pol Sensing distance: 65-350mm max 600mm |  |
| zws-70/CD/QS | Small rectangular ultrasonic sensor in impact-resistant plastic, with teach-in button, IP67. | Dimension: 32x20x18mm Output: 1xPNP Connection: M8, 4-pol Sensing distance: 120-700mm max 1000mm |  |
| lcs-130/DD/QP | Compact ultrasonic sensor, programmable via teach-by-wire or via computer (with LCA-2-KIT). | Dimension: 30x100mm Output: 2xPNP Connection: M12, 5-pol Sensing distance: 200-1300mm max 2000mm |  |
| lcs-130/IU/QP | Compact ultrasonic sensor, programmable via teach-by-wire or via computer (with LCA-2-KIT). | Dimension: 30x100mm Output: 0-10V/4-20mA Connection: M12, 5-pol Sensing distance: 200-1300mm max 2000mm | |
| CUBE-130/F | Program ultrasonic sensor with extended echo-damping features. House mountable in 5 positions. Mount with quick-lock included. | Dimension: 40x40x40mm Output: Push-pull
Connection: M12, 5-pol Sensing distance: 200-1300mm max 2000mm |  |
| CUBE-130/FFIU | Program ultrasonic sensor with extended echo-damping features. House mountable in 5 positions. Quick-lock bracket included. | Dimension: 40x40x40mm Output: 2xPush-pull + 1xAnalog
Connection: M12, 5-pol Sensing distance: 200-1300mm max 2000mm | |
| CUBE-340/F | Program ultrasonic sensor with extended echo-dampening features. House mountable in 5 positions. Quick-lock bracket included. | Dimension: 40x40x40mm Output: Push-pull
Connection: M12, 5-pol Sensing distance: 350-3400mm max 5000mm |  |
| CUBE-340/FFIU | Program ultrasonic sensor with extended echo-damping features. House mountable in 5 positions. Quick-lock bracket included. | Dimension: 40x40x40mm Output: 2xPush-pull + 1xAnalog
Connection: M12, 5-pol Sensing distance: 350-3400mm max 5000mm | |
| lcs+340/IU | Compact ultrasound sensor with a long working range. Can be programmed using the buttons or via computer (with LCA-2-KIT). | Dimension: 62x62x33mm Output: 10V/4-20mA Connection: M12, 5-pol Sensing distance: 350-3400mm max 5000mm |  |
| lcs+600/DD | Compact ultrasound sensor with long working range. Can be programmed using the buttons or via computer (with LCA-2-KIT). | Dimension: 62x62x33mm Output: 2xPNP Connection: M12, 5-pol Sensing distance: 600-6000mm max 8000mm |  |
