Built-in amplifier, 4-20mA
| Article number | Info | ||
|---|---|---|---|
| EVOXC#RXMX000150XXXX Recommended | Plug-in amplifier that connects directly to the sensor's M12 connector or via extension cable. Easy programming with EVOPLATFORMSET. | Output: Omvandlar
Pt100/Pt1000
till 4-20mA Connection: M12, 3-pol |  |
| EVOXTP#1MX000100XXXX Recommended | Compact sensor in acid-resistant steel and M12 connector. Programmable via EVOPLATFORMSET. Specify measuring range when ordering. | Output: 4-20mA Connection: M12, 3-pol Dimension: G1/8" L=13mm |  |
| EVOMINI-T-2MX000100 Recommended | Compact sensor in stainless steel and M12 connector. Measurement range 0-100°C. Analog output 4mA=0°, 20mA=100°C. | Output: 4-20mA Connection: M12, 3-pol Dimension: G1/8" L=24mm |  |
| EVOMINI-M-3-0150X000100 Recommended | Compact sensor in stainless steel and M12 connector. Measurement range 0…100°C. Analog output 4mA=0°, 20mA=100°C. | Output: 4-20mA Connection: M12, 3-pol Dimension: Ø3x150mm |  |

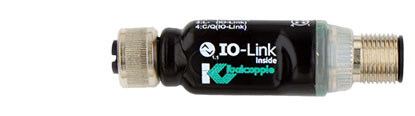

| IOCMX | Amplifier with M12 quick connection. Converts PT100/1000 and is fully programmable with IO-Link master, Smart Sensor Profile 3.1. Three operating modes: IO-Link, 4-20mA loop-powered or digital output with alarm thresholds (SIO). The sensor can also be delivered with your desired settings. Compatible with temperature sensors from the TRH, TRM, and TRC series. In-house production provides great opportunities for customized models. | Output: 4-20mA
Connection: M12, 3-pol |  |
| IOTM01X | TEMP SENSOR IO-Link SSP 3.1 H4 G1/8" L=13mm AISI316L IP67 Fully programmable with IO-Link master, Smart Sensor Profile 3.1. Three operating modes: IO-Link, 4-20mA loop-powered, or digital output with alarm thresholds (SIO). The sensor can also be supplied with your desired settings. | Output: 4-20mA
Connection: M12, 3-pol Dimension: G1/8" L=13mm |  |
| EVOXTP#2MX000100XXXX | Compact sensor in acid-resistant steel and M12 connector. Programmable via EVOPLATFORMSET. Specify measuring range when ordering. | Output: 4-20mA Connection: M12, 3-pol Dimension: G1/8" L=24mm | |
| EVOXI#MX000150XX-3--0150XX | Compact sensor in acid-resistant steel and M12 connector. Programmable via EVOPLATFORMSET. Specify measuring range when ordering. | Output: 4-20mA Connection: M12, 3-pol Dimension: Ø3x150mm | |
| EVOXI#MX000150XX-6--0350XX | Compact sensor in acid-resistant steel and M12 connector. Programmable via EVOPLATFORMSET. Specify measuring range when ordering. | Output: 4-20mA Connection: M12, 3-pol Dimension: Ø6x350mm |  |
