Float switches
Level switches are used to indicate liquid levels in tanks or wells. Suitable for applications such as pump control or dry-running protection. Level switches are simple, reliable, and cost-effective, making them popular in the water and wastewater industry.
| Article number | Info | Dimension | |
|---|---|---|---|
| HM-1C10M-R Recommended | Compact float switch with change-over function NO+NC. 10 meters EPDM cable. Weight 400 grams included in delivery. | Ø76mm |  |
| HM-2C10M-R Recommended | Compact start-stop float switch for pump control with adjustable hysteresis. Change-over function for emptying or filling. 10 meter EPDM cable. Incl. 400 gram weight. | Ø76mm | |
| M1C-5M Recommended | Compact float switch with chang-over function NO+NC. 5 meters PVC-cable. | Ø76mm |  |
| M1CN-8M Recommended | Compact float switch with change-over function NO+NC. 8 meter TPU cable. Extra durable cable, suitable for drains where, for example, oil and degreasers may be present. | Ø76mm | |
| CLR10 Recommended | Float switch with built-in weight (intended for water, density 0.95-1.10). Change-over function NO+NC. 10 meter PVC cable. | Ø99mm |  |
| M2H-10M | Compact start-stop float switch for pump control. Drain function. 10 meter PVC cable. Adjustable hysteresis, incl. 400 gram weight. | Ø76mm | |

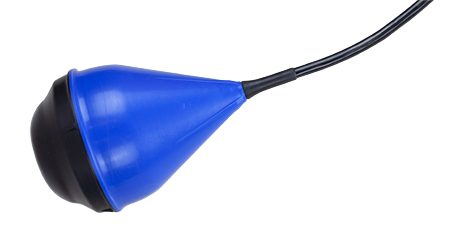

| C1CDW-10M | Level float suitable for potable water. NO+NC function and 10 meters TPU cable. | Ø99mm |  |
| 3H-5M | Pump control for emptying + high-level alarm, suitable for viscous liquids. 5 meter PVC cable. Adjustable hysteresis, incl. 400 gram weight. | Ø170mm |  |
| Q1C-FEP-2M | Ø30mm float switch. Chemically resistant and suitable for aggressive liquids. 2 meters FEP cable. Change-over function NO+NC. | Ø30mm |  |
| Q1C-TPK-5M | Ø30mm float switch that can be mounted through G1" hole. 5 meters TPK cable. Change-over function NO+NC. | Ø30mm |  |
| Q2C-TPK-5M | Ø30mm float switch. 5 meters TPK cable. Change-over function NO+NC with hysteresis, suitable for pump control. | Ø30mm |  |
| 572-10 | Adjust levelers 250g |  | |
| 572-11 | Adjust for level switches 400g |  | |
| 572-40 | Wall mount + stopper for cable installation |  |
